Copper Tube
| Models | Technical Specifications |
| LAST-4 | OD-4mm, Wall Thickness - 0.75mm approx. (Copper Coated) |
| LAST-6 | OD-6mm, Wall Thickness - 0.75mm approx. (Copper Coated) |
| LAST-8 | OD-8mm, Wall Thickness - 0.75mm approx. (Copper Coated) |
| LAST-10 | OD-10mm, Wall Thickness - 1.00mm approx. (Copper Coated) |

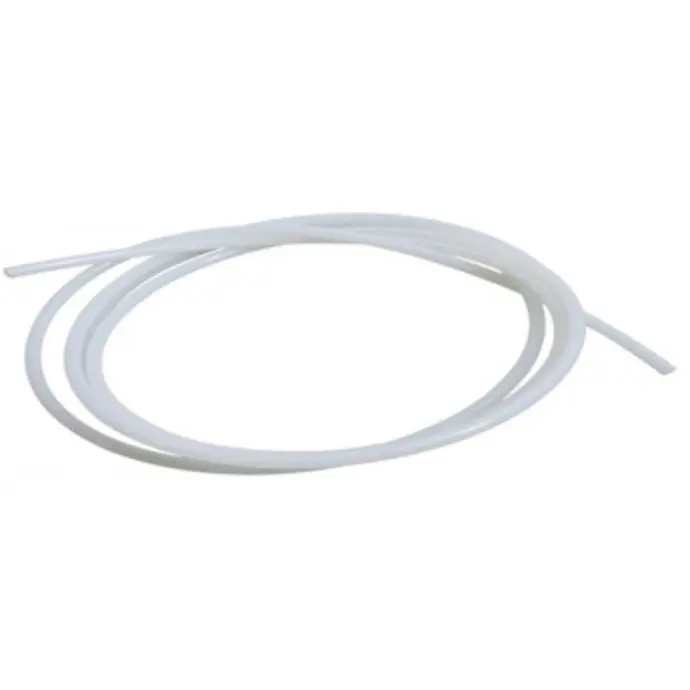

Nylon Tube
| Models | Technical Specifications |
| LANT-4 | OD-4mm, Wall Thickness - 1MM, Material Nylon-6 (Suitable for moving points) |
| LANT-6 | OD-6mm, Wall Thickness - 1MM, Material Nylon-6 (Suitable for moving points) |
| LANT-8 | OD-8mm, Wall Thickness - 1MM, Material Nylon-6 (Suitable for moving points) |
| LANT-10 | OD-10mm, Wall Thickness - 1MM, Material Nylon-6 (Suitable for moving points) |

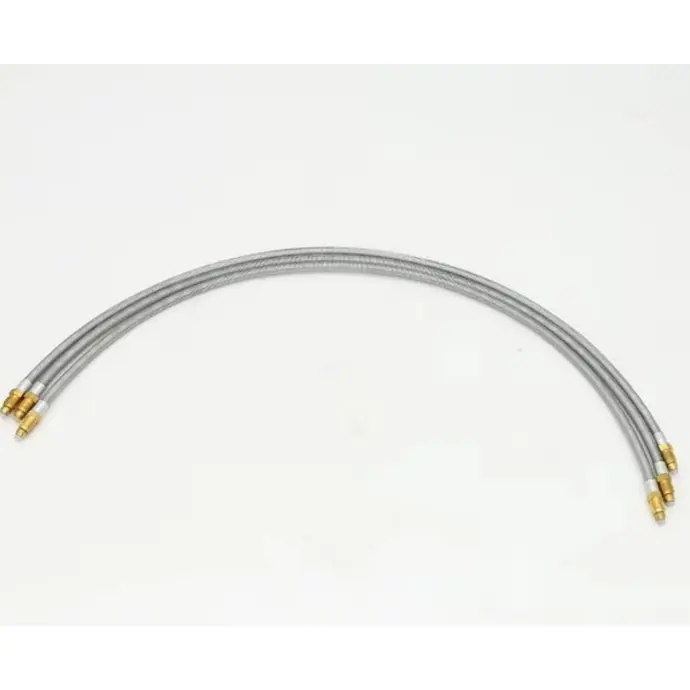

Mechanical Protection (Spring Coil)
| Models | Technical Specifications |
| LANT-4 | OD-4mm, Wall Thickness - 1MM, Material Nylon-6 (Suitable for moving points) |
| LANT-6 | OD-6mm, Wall Thickness - 1MM, Material Nylon-6 (Suitable for moving points) |
| LANT-8 | OD-8mm, Wall Thickness - 1MM, Material Nylon-6 (Suitable for moving points) |
| LANT-10 | OD-10mm, Wall Thickness - 1MM, Material Nylon-6 (Suitable for moving points) |

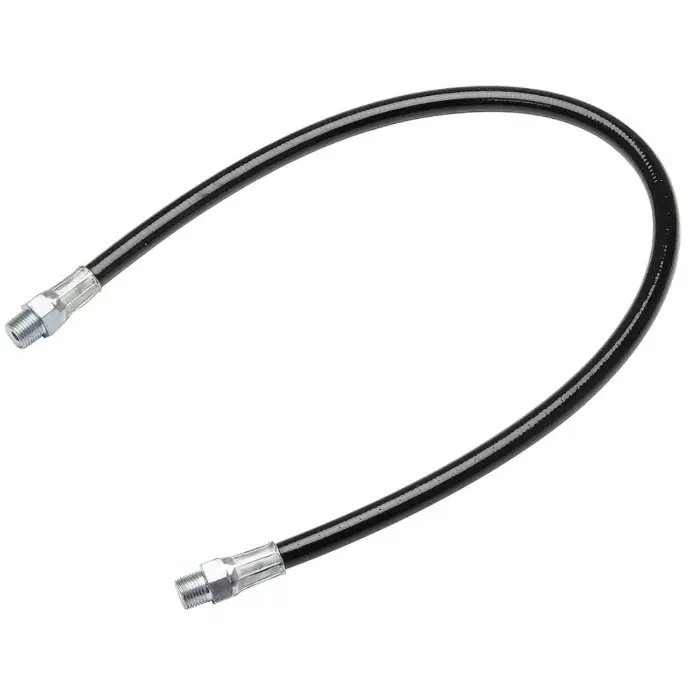

Rubbarised Hoses
| Models | Technical Specifications |
| LARH-4-250 | Rubberised Hoses 250mm long with 4mm steel ends. |
| LARH-4-500 | Rubberised Hoses 500mm long with 4mm steel ends. |
| LARH-4-800 | Rubberised Hoses 800mm long with 4mm steel ends. |
| LARH-4-1000 | Rubberised Hoses 1000mm long with 4mm steel ends. |
| LARH-6-250 | Rubberised Hoses 250mm long with 6mm steel ends. |
| LARH-6-500 | Rubberised Hoses 500mm long with 6mm steel ends. |
| LARH-6-800 | Rubberised Hoses 800mm long with 6mm steel ends. |
| LARH-6-1000 | Rubberised Hoses 1000mm long with 6mm steel ends. |

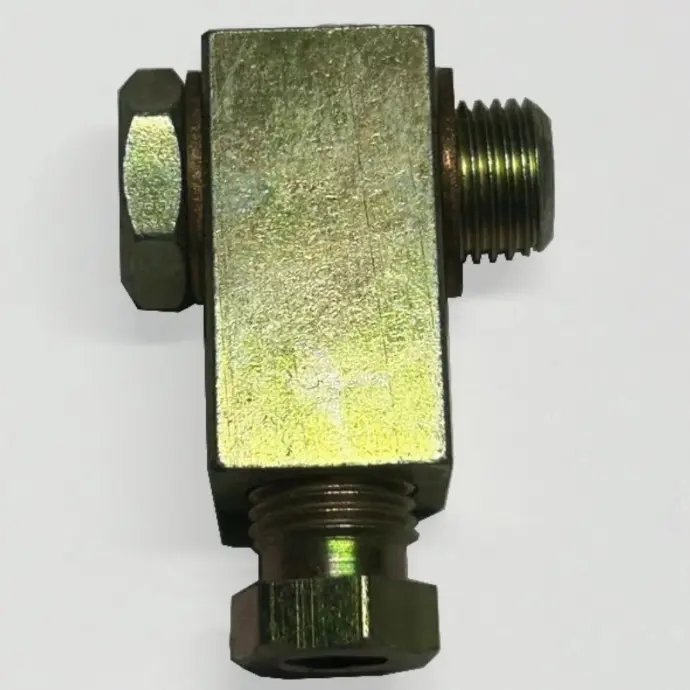

Banjo
| Models | Technical Specifications |
| LAB-6(M10X1) | Male Threads M10X1 (for 6mm OD Tube) used for right angle connection of tube. |

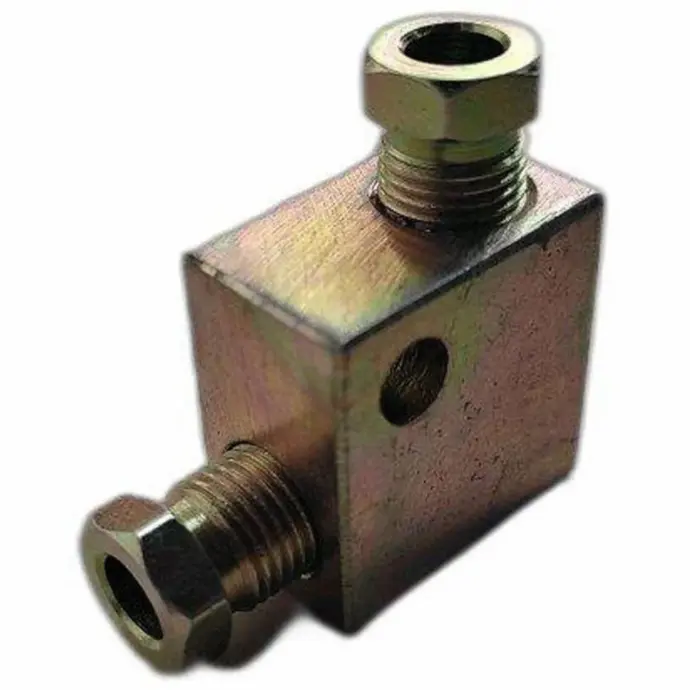

Elbow Blocks
| Models | Technical Specifications |
| LAEB-4 | For joining two tubes at right angle of 6mm OD & 4MM OD Tube. |
| LAEB-6 | For joining two tubes at right angle of 6mm OD & 6MM OD Tube. |

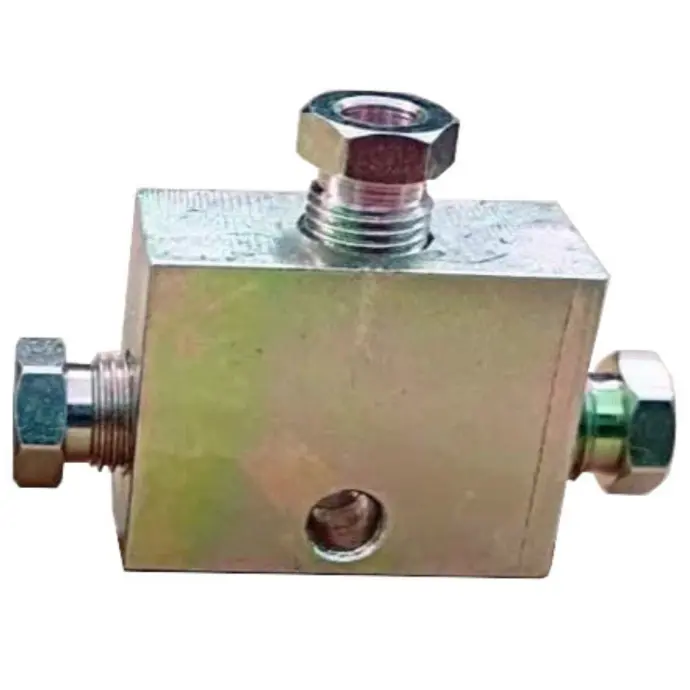

Tee Blocks
| Models | Technical Specifications |
| LATB-4 | For Dividing main line into three lines of 4mm OD tube. |
| LATB-6 | For Dividing main line into three lines of 6mm OD tube. |

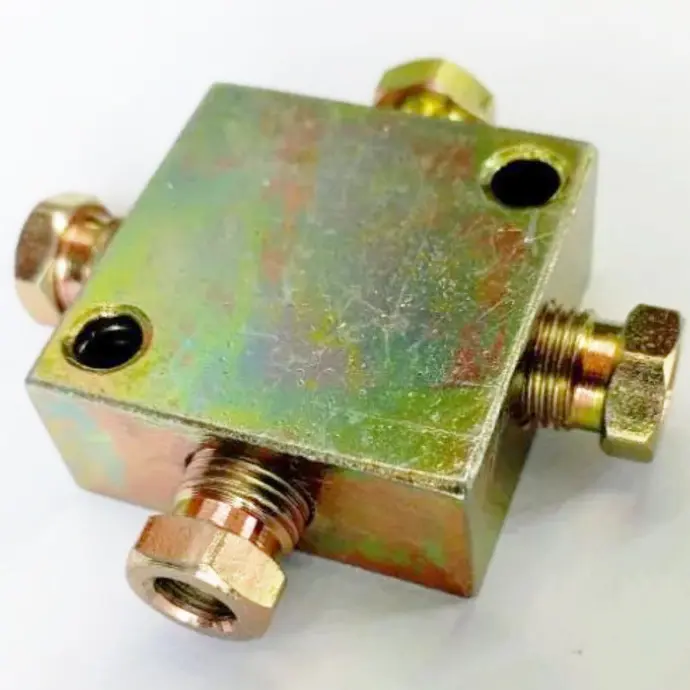

Cross Blocks
| Models | Technical Specifications |
| LACB-4 | For Dividing main line into four lines of 4mm OD tube. |
| LACB-6 | For Dividing main line into four lines of 6mm OD tube. |

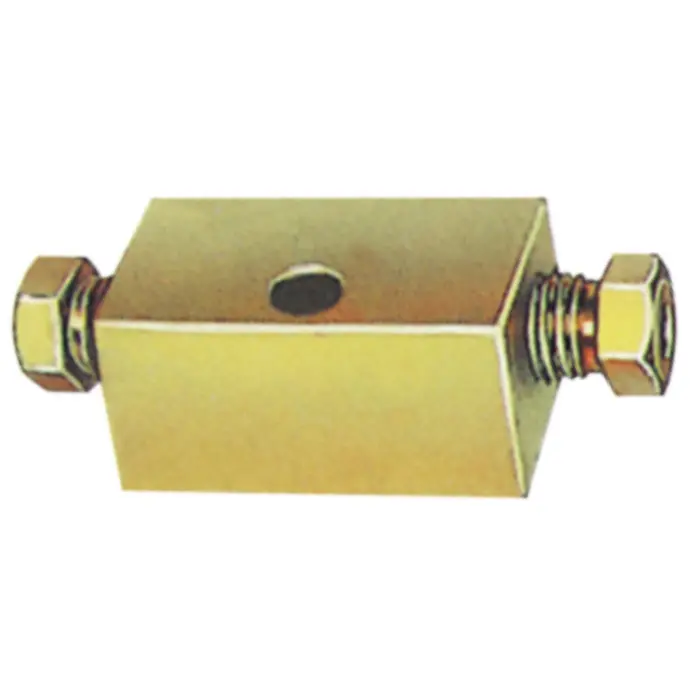

Connector Blocks
| Models | Technical Specifications |
| LAC-4 | For joining two tubes of 6mm OD tube. |
| LAC-6 | For joining two tubes of 6mm OD tube. |
Elbows (Taper Thread)
| Models | Technical Specifications |
| LAE-4T (1/8" BSP or M8X1) | Male Thread 1/8" BSP (taper thread) for right angle connection of lubrication point with respective female tapping i.e. for 4mm OD tube |
| LAE-4T (1/8" BSP) | Male Thread 1/8" BSP (taper thread) for right angle connection of lubrication point with respective female tapping i.e. for 4mm OD tube |
Banjo (4 mm)
| Models | Technical Specifications |
| LAB-4 (1/8" BSP or M8X1) | Male thread M8X1 & 1/8" BSP used for right angle turn from end point of M/c |
Straight Connector (Taper Threads)
| Models | Technical Specifications |
| LASC-4T (1/8" BSP or M8X1) | To connect 4mm OD tube at end point of Machine |
| LASC-4T (1/4" BSP) | To connect 4mm OD tube at end point of Machine |
| LASC-6T (1/8" BSP or M8X1) | To connect 6mm OD tube at end point of Machine |
| LASC-6T (1/4" BSP) | To connect 6mm OD tube at end point of Machine |
Clamps
| Models | Technical Specifications |
| LAC-4-1 | To clamp Single 4MM OD tube |
| LAC-4-2 | To clamp Double 4MM OD tube |
| LAC-4-3 | To clamp Triple 4MM OD tube |
| LAC-6-1 | To clamp Single 6MM OD tube |
| LAC-10-1 | To clamp Single 10MM OD tube |
Screws
Models | Technical Specifications |
| LAS-5X8 | For fixing Clamps, Tee Blocks, Cross Blocks, Manifolds etc |
| LAS-5X20 | For fixing Clamps, Tee Blocks, Cross Blocks, Manifolds etc |
| LAS-5X30 | For fixing Clamps, Tee Blocks, Cross Blocks, Manifolds etc |
Locking Screws
| Models | Technical Specifications |
| LALS-4 | For solderless connection of 4mm OD Tube |
| LALS-6 | For solderless connection of 6mm OD Tube |
Locking Cone (Ferule)
| Models | Technical Specifications |
| LALC-4(Brass) | Material brass, ID-4mm & 6mm Material All./Brass/ M.S. ID -10MM |
| LALC-6(Brass) | Material brass, ID-4mm & 6mm Material All./Brass/ M.S. ID -10MM |
| LALC-10(Aluminium) | Material Aluminium, ID-4mm & 6mm Material All./Brass/ M.S. ID -10MM |
Sealing Washer
| Models | Technical Specifications |
| LASW-8 | Material Copper, ID -8mm |
| LASW-10 | Material Copper, ID -10mm |
| LASW-1/4" | Material Copper, ID 15mm |
Straight Connector
| Models | Technical Specifications |
| LASC-10T,1/4"BSP | Male thread 1/4" BSP (taper thread) for connecting 10mm OD tube |
| LASC-8T,1/4"BSP | Male thread 1/4" BSP (taper thread) for connecting 10mm OD tube |
Elbow (8 mm)
| Models | Technical Specifications |
| LAE-10T,1/4"BSP | Male thread 1/4" BSP (taper thread) for right angle connecting 10mm OD tube |
| LAE-8T,1/4"BSP | Male thread 1/4" BSP (taper thread) for right angle connecting 10mm OD tube |
Connector Block
| Models | Technical Specifications |
| LAC-10 | For connecting two tubes of 10mm OD |
| LAC-8 | For connecting two tubes of 8mm OD |
Level Gauge
| Models | Technical Specifications |
| LA0LG-120U | To use in lub. Units/ Hyd. Tanks, length-5" |
| LAOLG-75P | To use in lub. Units/ Hyd. Tanks, length-3" |
