Lubrication Systems

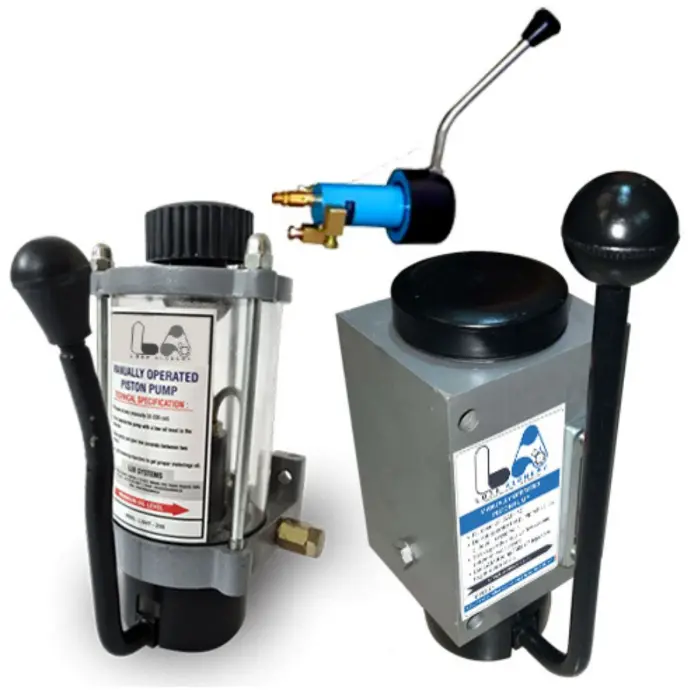

Manual Piston Pumps

Models	Technical Specifications
LA-7	Without Reservoir, Discharge- 7cc/stroke, Pressure setting 12 Kg/Cm²
LA-250-4	Reservoir 0.25 Ltr.(All. Body) Discharge- 4cc/stroke, Pr. Set. 10-12 Kg/Cm²
LA-600-6	Reservoir 0.60 Ltr.(All. Body) Discharge- 6cc/stroke, Pr. Set. 15Kg/Cm²
LA-2000-12	Reservoir 2 Ltrs.(All. Body) Discharge- 12cc/stroke, Pr. Set. 20 Kg/Cm²
LA-400-5(Dx)	Reservoir 0.40Ltr.(Transparent)Discharge- 5cc/stroke,Pr. Set.12-15Kg/Cm²

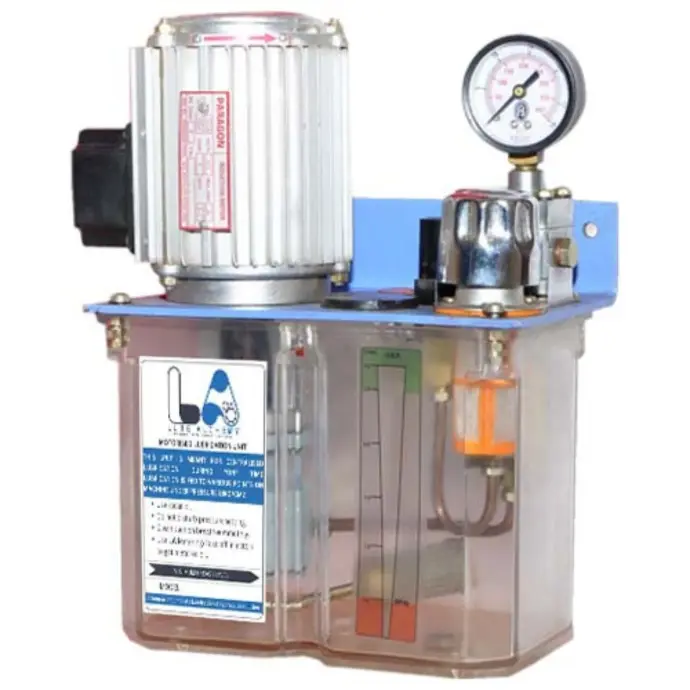

Motorised Lubrication Units

Models	Single Phase Units
LA-2800(Dx)	Reservoir Cap. 2.8Ltr.(Transparent) Polycarbonate. Motor-110W, 220V AC, 1340RPM, Discharge 0.75Lpm, Pr. Setting 10-12 Kg/Cm²
LA-2800(Dx)	PS/FS Reservoir Cap. 2.8Ltr.(Transparent) Polycarbonate. Motor-110W, 220V AC, 1340RPM, Discharge 0.75Lpm, Pr. Setting 10-12Kg/Cm², with Pr. switch and Float switch
LA-3	Reservoir Cap. 3Ltr., Motor 0.10Kw. 220V AC, 1340RPM, Discharge 1Lpm, Pr. Set. 12-15 Kg/Cm².
LA-3(Dx)	Reservoir Cap. 3Ltr., Motor 0.10Kw. 220V AC, 1340RPM, Discharge 1Lpm, Pr. Set. 12-15 Kg/Cm².

Note: Electronic Timer, Float Switch, Pressure Switch Optional

Pnuematically Operated Piston Pumps

Models	Technical Specifications
LAPn-600-6	Reservoir Cap. 0.60Ltr.(Aluminium/Transparent) Discharge-6cc/stroke, input Air Pressure 5-7Kg/Cm², Pr. Setting-15Kg/Cm².
LAPn-2000-10	ReservoirCap.2Ltr.(Aluminium/Transparent) Discharge-10cc/stroke, input Air Pressure 5-7Kg/Cm², Pressure Setting-20Kg/Cm².
LAPn-3000-10	ReservoirCap.3Ltr., Discharge-10ccperstroke, Input Pr. Set. 15-20Kg/Cm², with Float Switch. Air Pressure 5-7Kg/Cm²,
LAPn-/TSV-3000-10	ReservoirCap.3Ltr., Discharge-10ccperstroke, Input With Timer, Solenoid valve & Float Switch. Air Pressure 5-7Kg/Cm²

Models	Technical Specifications
LA-7	Without Reservoir, Discharge- 7cc/stroke, Pressure setting 12 Kg/Cm²
LA-250-4	Reservoir 0.25 Ltr.(All. Body) Discharge- 4cc/stroke, Pr. Set. 10-12 Kg/Cm²
LA-600-6	Reservoir 0.60 Ltr.(All. Body) Discharge- 6cc/stroke, Pr. Set. 15Kg/Cm²
LA-2000-12	Reservoir 2 Ltrs.(All. Body) Discharge- 12cc/stroke, Pr. Set. 20 Kg/Cm²
LA-400-5(Dx)	Reservoir 0.40Ltr.(Transparent)Discharge- 5cc/stroke,Pr. Set.12-15Kg/Cm²
LA-600-5(Dx)	Reservoir 0.60 Ltr.(Transparent),Discharge- 5cc/stroke, Pr, Set. 15 Kg/Cm²
LA-1000-7(Dx)	Reservoir 1Ltr.(Transparent), Discharge- 7cc/stroke, Pr. set. 15-18 Kg/Cm²
LA-2000-12(Dx)	Reservoir 2 Ltrs.(Transparent) Discharge- 12cc/stroke, Pr. Set.-20Kg/Cm²

Motorised Lubrication Units

Model	Technical Specifications
LA-2800(Dx)	Reservoir Cap. 2.8Ltr.(Transparent) Polycarbonate. Motor-110W, 220V AC, 1340RPM, Discharge 0.75Lpm, Pr. Setting 10-12 Kg/Cm²
LA-2800(Dx)	PS/FS Reservoir Cap. 2.8Ltr.(Transparent) Polycarbonate. Motor-110W, 220V AC, 1340RPM, Discharge 0.75Lpm, Pr. Setting 10-12Kg/Cm², with Pr. switch and Float switch
LA-3	Reservoir Cap. 3Ltr., Motor 0.10Kw. 220V AC, 1340RPM, Discharge 1Lpm, Pr. Set. 12-15 Kg/Cm².
LA-3(Dx)	Reservoir Cap. 3Ltr., Motor 0.10Kw. 220V AC, 1340RPM, Discharge 1Lpm, Pr. Set. 12-15 Kg/Cm².

Note: Electronic Timer, Float Switch, Pressure Switch Optional

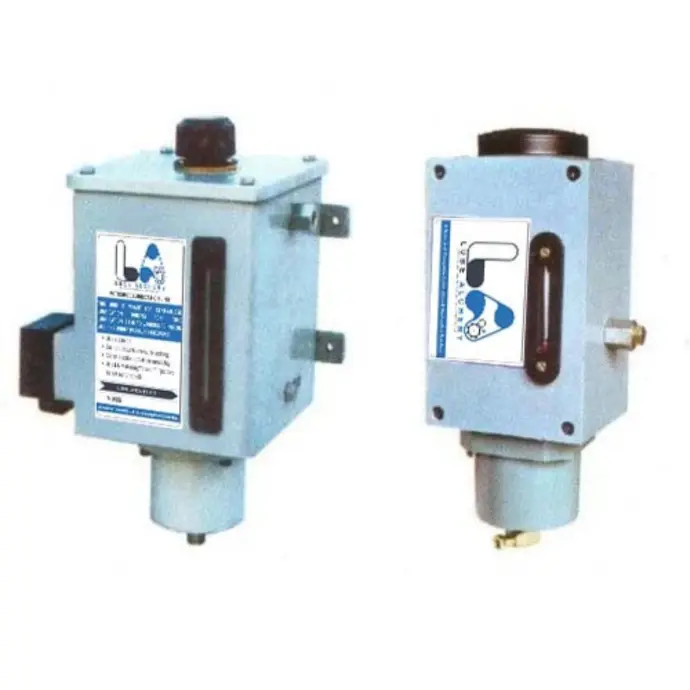

Pnuematically Operated Piston Pumps

Models	Technical Specifications
LAPn-600-6	Reservoir Cap. 0.60Ltr.(Aluminium/Transparent) Discharge-6cc/stroke, input Air Pressure 5-7Kg/Cm², Pr. Setting-15Kg/Cm².
LAPn-2000-10	ReservoirCap.2Ltr.(Aluminium/Transparent) Discharge-10cc/stroke, input Air Pressure 5-7Kg/Cm², Pressure Setting-20Kg/Cm².
LAPn-3000-10	ReservoirCap.3Ltr., Discharge-10ccperstroke, Input Pr. Set. 15-20Kg/Cm², with Float Switch. Air Pressure 5-7Kg/Cm²,
LAPn-/TSV-3000-10	ReservoirCap.3Ltr., Discharge-10ccperstroke, Input With Timer, Solenoid valve & Float Switch. Air Pressure 5-7Kg/Cm²

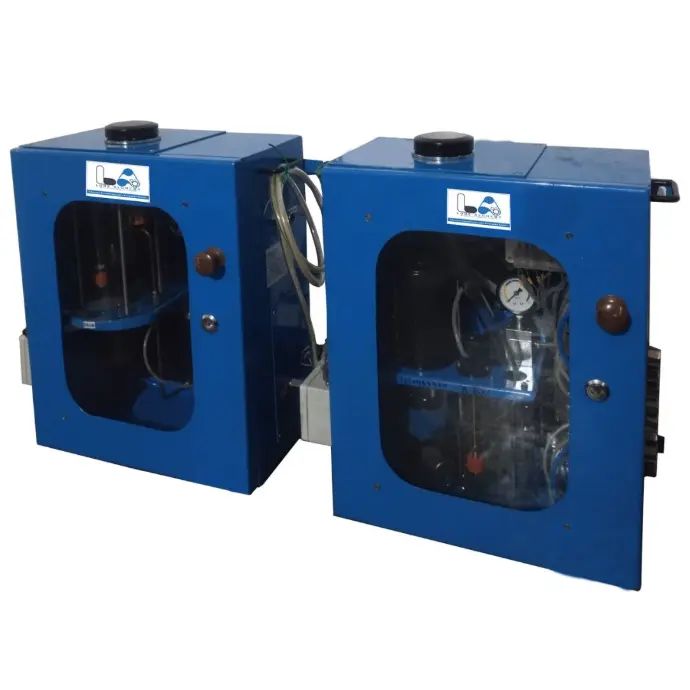

Air Oil Mist Lubricators

Models	Technical Specifications
LA-750	Reservoir Cap. 0.75Ltr. Input air Pressure - 3 to 5 Kg/Cm² with relief valve to safe guard the system. Discharge can be adjusted by help of flow adjustment valve as per requirement. suitable for intermittent application.
LA-1500	Reservoir Cap. 1.50Ltr Input air Pressure - 3 to 5 Kg/Cm² with relief valve to safe guard the system. Discharge can be adjusted by help of flow adjustment valve as per requirement. suitable for intermittent application.
LA-2/PS/FS	Reservoir Cap.2Ltr Input air Pressure - 3 to 5 Kg/Cm² with relief valve to safe guard the system. Discharge of oil & air can be adjusted by help of flow adjustment valve as per requirement. Float switch to sense minimum oil level and pressure switch to set required air pressure. The stroke of injector pump can be adjusted by the help of cyclic timer i.e. 5 to 75 stroke per minute.
LA-5/PS/FS	Reservoir Cap.5Ltr Input air Pressure - 3 to 5 Kg/Cm² with relief valve to safe guard the system. Discharge of oil & air can be adjusted by help of flow adjustment valve as per requirement. Float switch to sense minimum oil level and pressure switch to set required air pressure. The stroke of injector pump can be adjusted by the help of cyclic timer i.e. 5 to 75 stroke per minute.

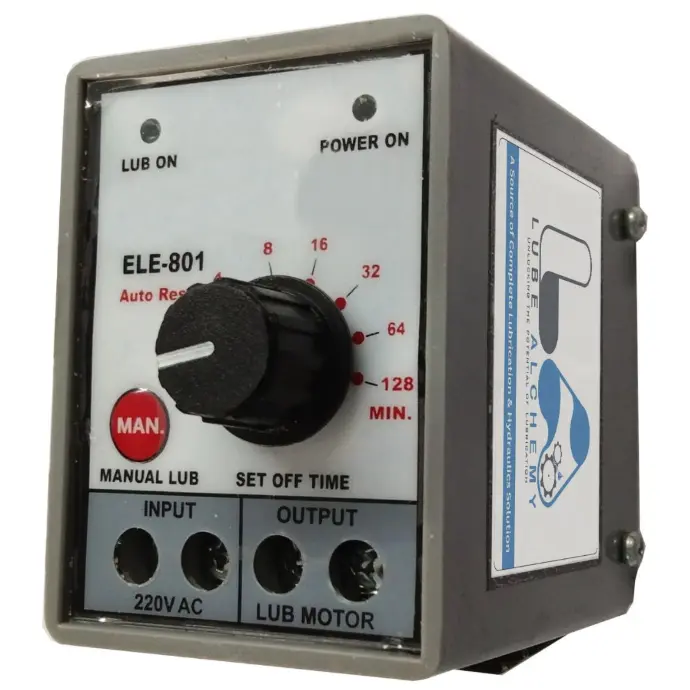

Electronic Lubrication Timer

Models	Technical Specifications
LAET-103	Electronic Lubrication timer with ON time 5sec.(fixed) OFF time 1, 2, 4, 8, 16, 32, 64, 128 minutes.(Adj.) with the help of Rotary Switch. ABLED’s bar makes possible to read out the time over with the rate of minute. INPUT:220VAC. INDICATION: Main ON, Lub. ON,
LAET-105	The working ofthis timer is similar to the model LAET-103. Only mounting of this timer is different (Base mounting type). The ON time of this timer is 5sec Fixed and OFF time is adjustable i.e. 1, 2, 4, 8, 16, 32, 84,128 min. INPUT 220VAC, INDICATION: Main ON, Lub. ON

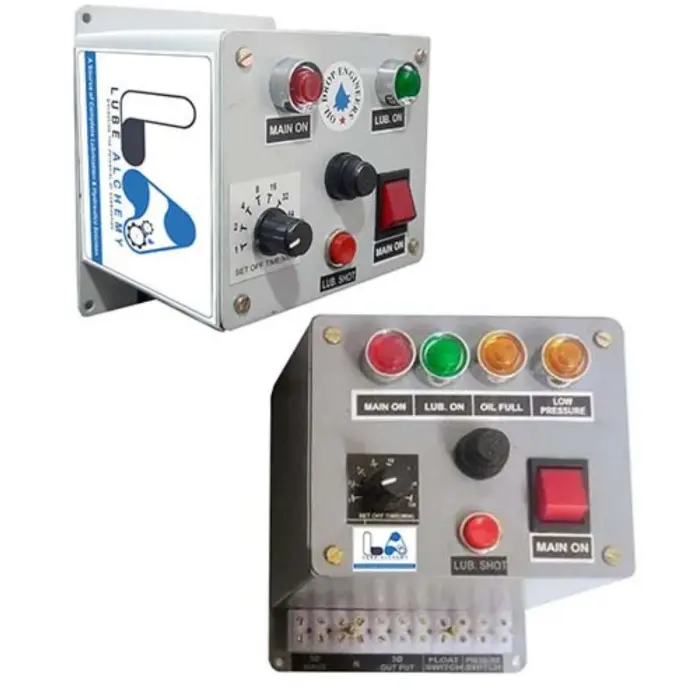

Electronic Lubrication Controllers

Models	Technical Specifications
LAELC-501	Panel Mounted type, ON time 5 sec. (fixed), OFF time 1, 2, 4, 8, 16, 32, 64, 128 min. can be adj. with the help of Rotary switch. 8 LED's bar makes possible to read out the time Over with the resolution of 1min. If the required pressure will not developed by the lub. system, the machine can be interlocked with the help of this controller. Input - 110/220V.
LAELC-502	Wall Mounted type, ON time 5 sec. (fixed), OFF time 1, 2, 4, 8, 16, 32, 64, 128 min. can be Adj. with the help of Rotary Switch. 8 LED's bar makes possible to read out the time over with the resolution of 1 min. If the required pressure will not developed by the lub. system, the machine can be interlocked with the help of this controller. Input - 110/220VAC.
LAELC-5/2-120	Wall Mounted type, ON time 5 sec. (fixed) and OFF time 1, 2, 4, 6, 8, 16, 32, 64, 128 min. (Adj.) with built in contactor and push switch for manual lubrication. Input - 415V AC.

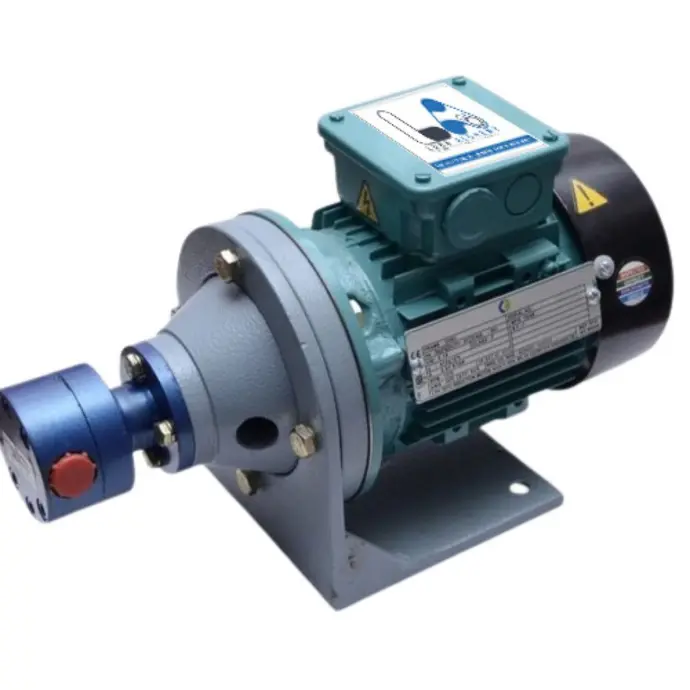

Motor Pump Assembly

Models	Technical Specifications
LAPA-0.5/3	Discharge 0.5-3 Litre per minute Motor 0.18Kw. 415V AC. RPM 1440
LAPA-6	Discharge 6 Litres per minute Motor 0.37Kw. 415VAC. RPM 1440
LAPA-10	Discharge 10 Litres per minute Motor 0.75Kw. 415VAC. RPM 1440
LAPA-16	Discharge 16 Litres per minute Motor 1.5Kw. 415V AC. RPM 1440
LAPA-25	Discharge 25 Litres per minute Motor 1.5Kw. 415V AC. RPM 1440
LAPA-40	Discharge 40 Litres per minute Motor 2.25Kw. 415V AC. RPM 1440

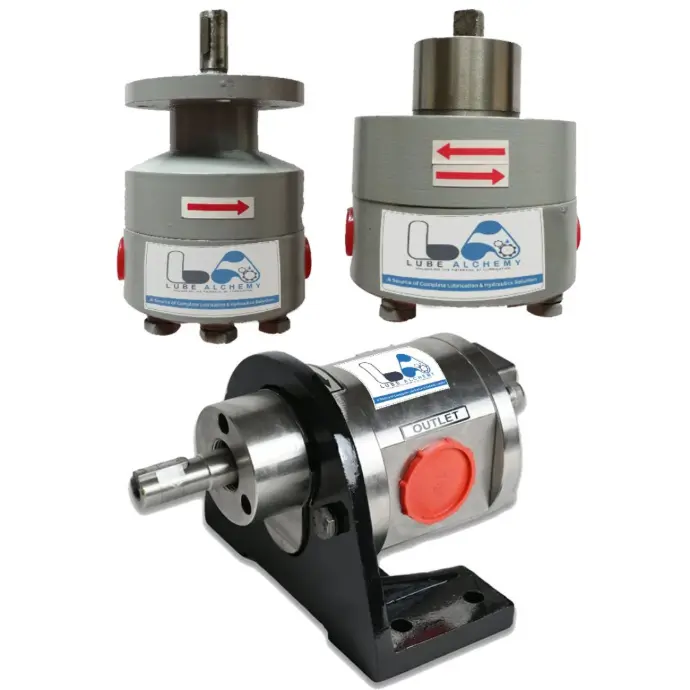

Rotatory Pumps (Flange and insert type)

Models	Technical Specifications
LARP-0.5	Discharge 0.5 Litres per minute. Non Reversible
LARP-1	Discharge 1 Litres per minute. Non Reversible
LARP-3	Discharge 3 Litres per minute. Non Reversible
LARP-6	Discharge 6 Litres per minute. Non Reversible
LARP-10	Discharge 10 Litres per minute. Non Reversible
LARP-16	Discharge 16 Litres per minute. Non Reversible
LARP-25	Discharge 25 Litres per minute. Non Reversible
LARP-40	Discharge 40 Litres per minute. Non Reversible

Note: 30% Extra charge for Reversible type. Mounting bracket on additional cost.

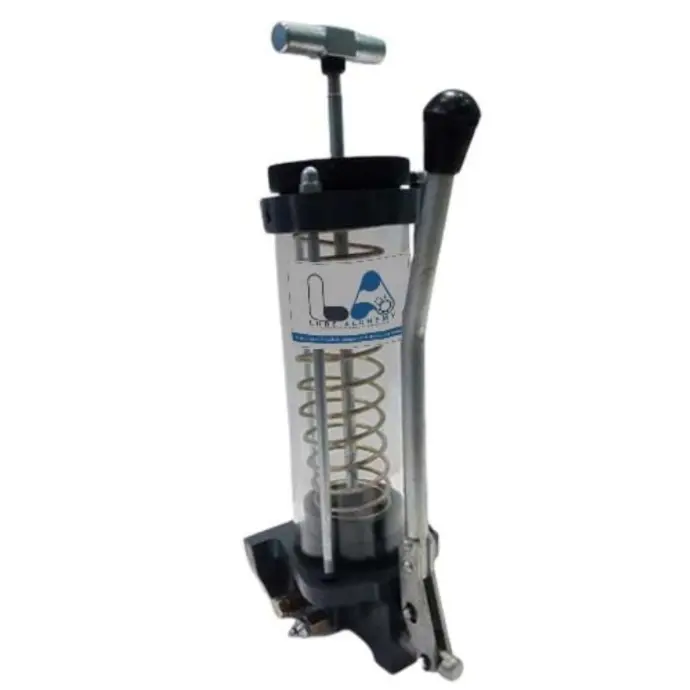

Manual Grease Pumps

Models	Technical Specifications
LA-GP-3	Reservoir Cap.- 500cc, Discharge - 3cc per stroke. Maximum Pressure - 50Kg/Cm².
LA-GP-1000-4	Reservoir Cap.- 1000cc, Discharge - 4cc per stroke. Maximum Pressure - 80Kg/Cm².
LA-GP-1500-6	Reservoir Cap. - 1500cc, Discharge - 6cc per stroke. Maximum Pressure - 100Kg/Cm².

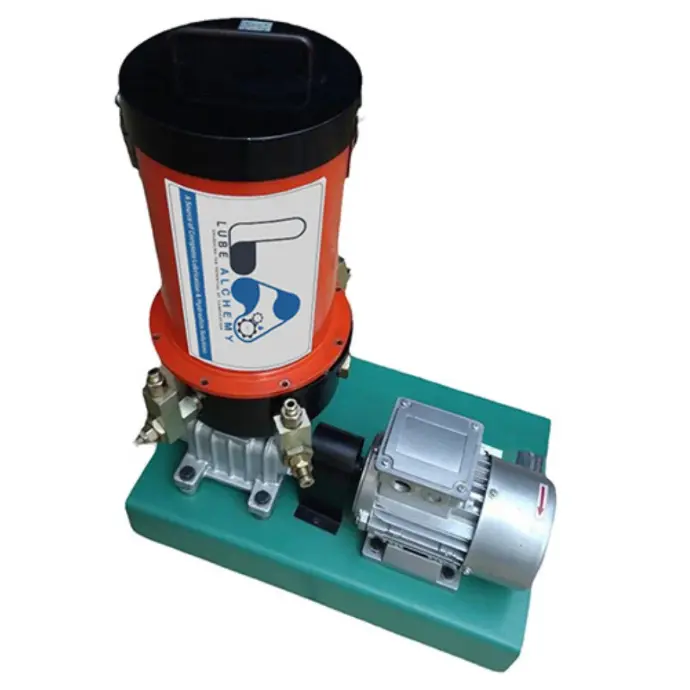

Radial Lubricators (Oil/Grease)

Models	Technical Specifications
LARL-5-6	Reservoir Cap. 5Kg. Number of plunger pump elements - 6 nos., Max. Pr. - 250Kg/Cm², Motor. 25HP/.18kw, 3 Phase, 1340 RPM, Foot Mounting, Output max. - 0 to 0.25cc per stroke (adjustable) a teach outlet independently.
LARL-15-6	Reservoir Cap. 15Kg., Number of plunger pump elements - 6 nos., Max. Pr. 250Kg/Cm², Motor. 25HP/.18kw, 3 Phase, 1340 RPM, Foot Mounting, Output max. - 0 to 0.25cc per stroke (adjustable) a teach outlet independently.
LARL-15-12	Reservoir Cap. 15Kg., Number of plunger pump elements - 12 nos., Max. Pr. 250Kg/Cm², Motor. 25HP/.18kw, 3 Phase, 1340 RPM, Foot Mounting, Output max. - 0 to 0.25cc Per stroke (adjustable) a teach outlet independently.

Note: Add or delete per Plunger @2500/- and Reservoir size @500/- per Kg. Low/High level switch on additional cost Rs.3000 - 5000/-.

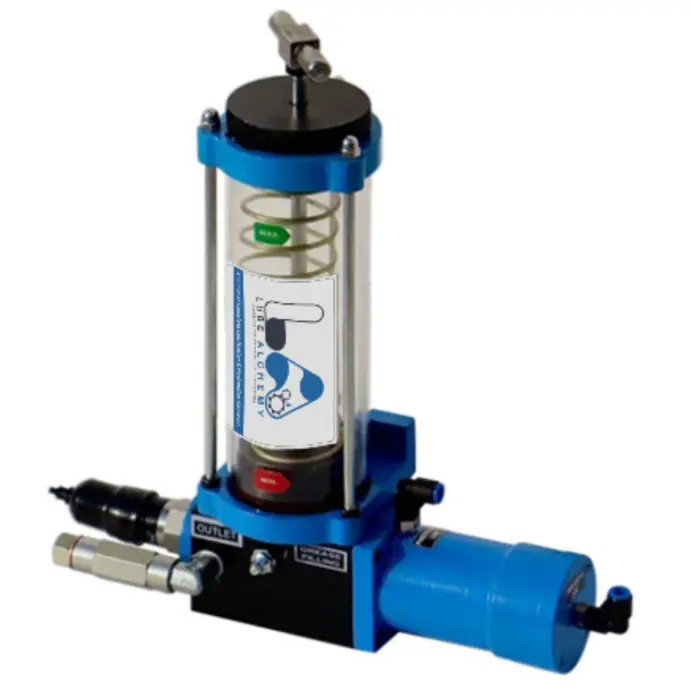

Pneumatic Grease Pumps

Models	Technical Specifications
LAPnGP-1500-10	Reservoir imported Acrylic, Cap. - 1500cc, Discharge - 0 to 10cc Per Stroke (adj.) Max Pr.-180Kg/Cm², Outlet port size -"BSP , with check valve Air Input 4-6Kg/Cm²
LAPnGP-3000-10	Reservoir imported Acrylic, Cap. - 3000cc, Discharge - 0 to 10cc Per Stroke (adj.) Max. Pr.-180Kg/Cm², Outlet port size-"BSP, with check valve. Air Input 4-6Kg/Cm²
LAPnGP-5000-10	Reservoir imported Acrylic, Cap. - 5000cc, Discharge - 0 to 10cc Per Stroke (adj.) Max. Pr.-180Kg/Cm², Outlet port size-"BSP, with check valve Air Input 4-6Kg/Cm²

Note: Low level switch, Solenoid valve, Timer, Pressure switch Optional. FRC, Mounting bracket, Foot switch on additional cost.

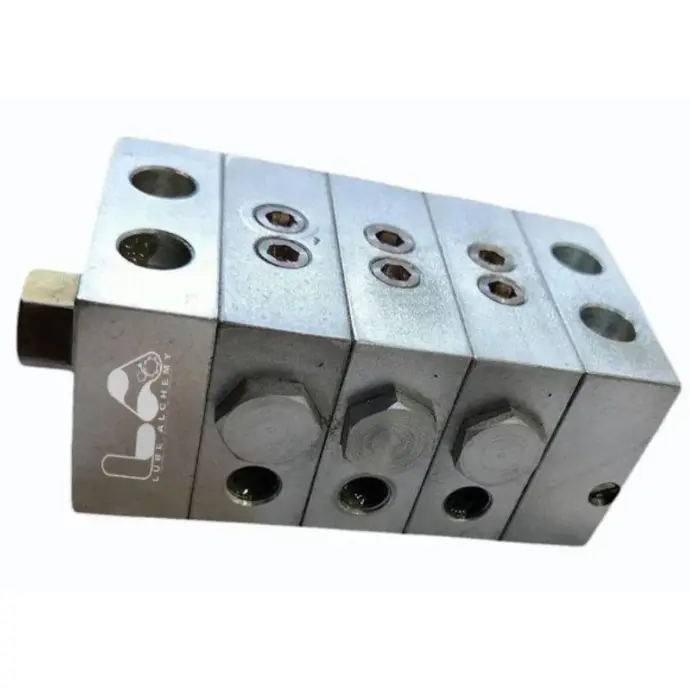

Secondary Block LAPB - 4555 Progressive Blocks (Oil/Grease)

Models	Technical Specifications
LAPB-4555-3-6	Progressive Block with 3 nos. of Middle Element (Maximum 6 outlets).
LAPB-4555-4-8	Progressive Block with 4 nos. of Middle Element (Maximum 8 outlets).
LAPB-4555-5-10	Progressive Block with 5 nos. of Middle Element (Maximum 10 outlets).
LAPB-4555-6-12	Progressive Block with 6 nos. of Middle Element (Maximum 12 outlets).
LAPB-4555-7-14	Progressive Block with 7 nos. of Middle Element (Maximum 14 outlets).
LAPB-4555-8-16	Progressive Block with 8 nos. of Middle Element (Maximum 16 outlets)
LAPB-4555-9-18	Progressive Block with 9 nos. of Middle Element (Maximum 18 outlets).
LAPB-4555-10-20	Progressive Block with 10 nos. of Middle Element (Maximum 20 outlets).

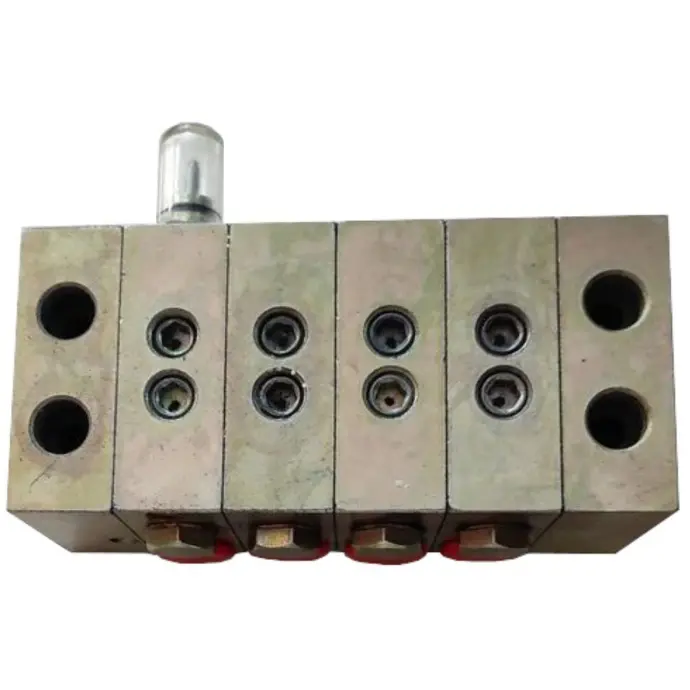

Master Block LAPB - 6080 Progressive Blocks (Oil/Grease)

Models	Technical Specifications
LAPB-6080-3-6	Progressive Block with 3 nos. of Middle Element (Maximum 6 outlets).
LAPB-6080-4-8	Progressive Block with 4 nos. of Middle Element (Maximum 8 outlets).
LAPB-6080-5-10	Progressive Block with 5 nos. of Middle Element (Maximum 10 outlets).
LAPB-6080-6-12	Progressive Block with 6 nos. of Middle Element (Maximum 12 outlets).
LAPB-6080-7-14	Progressive Block with 7 nos. of Middle Element (Maximum 14 outlets).
LAPB-6080-8-16	Progressive Block with 8 nos. of Middle Element (Maximum 16 outlets).
LAPB-6080-9-18	Progressive Block with 9 nos. of Middle Element (Maximum 18 outlets).
LAPB-6080-10-20	Progressive Block with 10 nos. of Middle Element (Maximum 20 outlets).

Note: Add Indicator Pin @ 1000/- and Proximity Sensor @ 1500/-

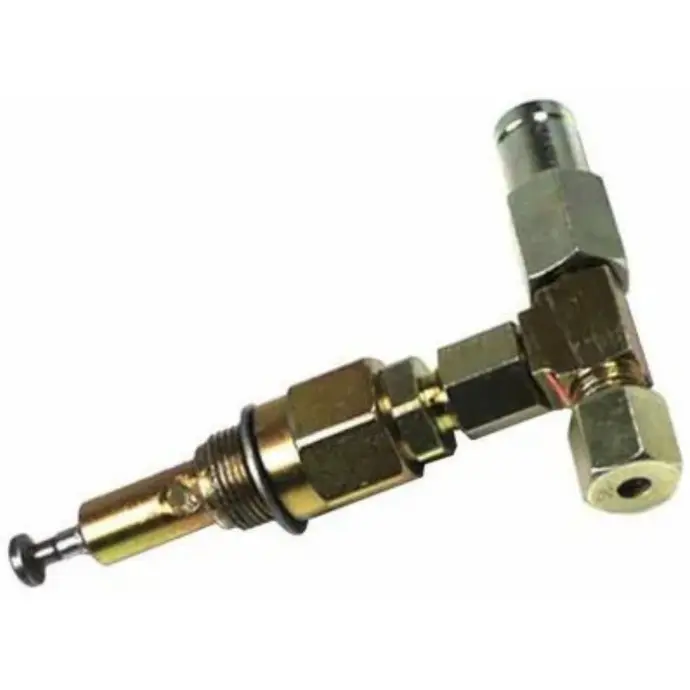

Plunger Element

Models	Technical Specifications
Plunger Element	Discharge 0 to 0.25cc/ strole (adj.) Max. Pr. 250 Kg/Cm², Mounting Thread M 22x1.5

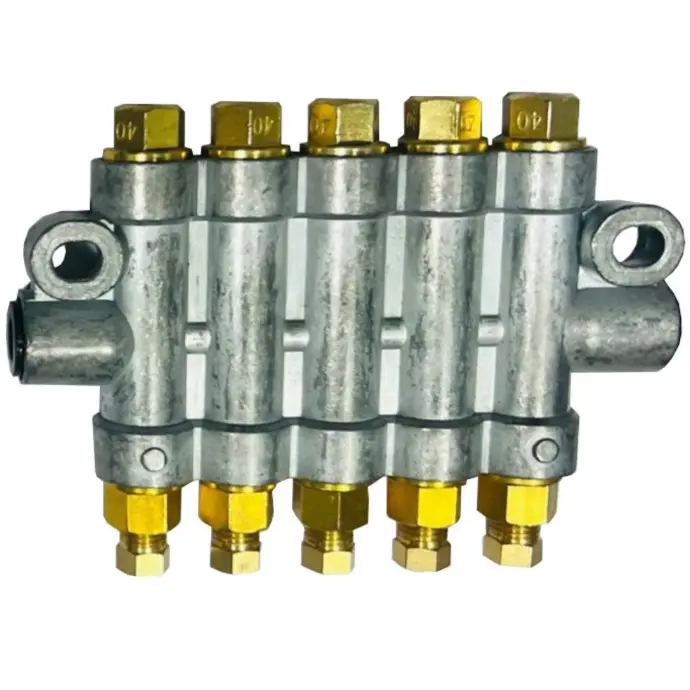

Take-off Metering Injectors

Models	Technical Specifications
LAMT - 001	No. of outlets 1, Dosage in cc 0.1 to 0.4, Dosage in Drops 3-12. Area in cm², Min. / Max. 20/40, 40/65, 65/100, 100/150.
LAMT - 002	No. of outlets - 2, Dosage in cc 0.1 to 0.4, Dosage in Drops 3-12. Area in cm², Min. / Max. 20/40, 40/65, 65/100, 100/150.
LAMT - 003	No. of outlets-3, Dosage in cc 0.1 to 0.4, Dosage in Drops 3-12. Area in cm², Min. / Max. 20/40, 40/65, 65/100, 100/150.
LAMT - 004	No. of outlets-4, Dosage in cc 0.1 to 0.4, Dosage in Drops 3-12. Area in cm², Min. / Max. 20/40, 40/65, 65/100, 100/150.

12-24V DC Radial Lubricator

Models	Technical Specifications
LARL -5 -3	Reservoir Cap. 5 Ltrs (Transparent) no. of plunger pump - 3, Dis. 0 to 0.25cc per stroke/ Element (Adj.) Max. Pr. 100KG/Cm², 12V DC input supply.

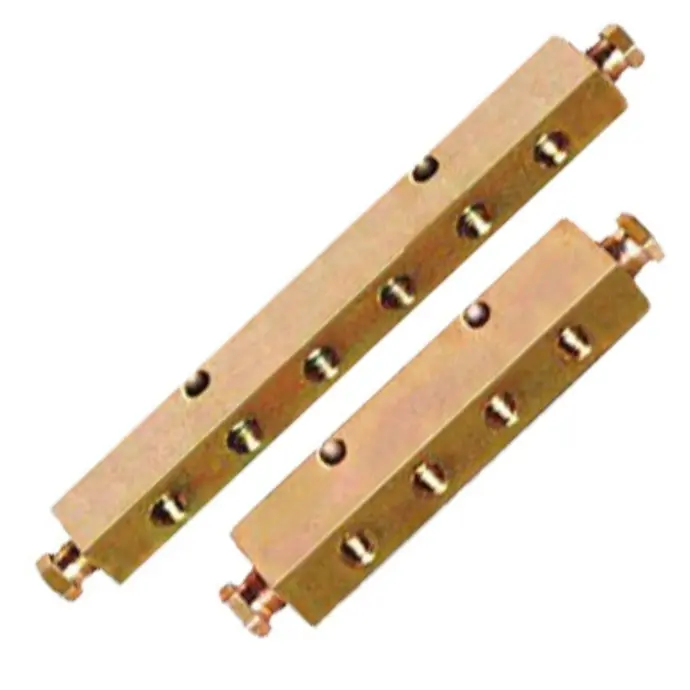

For LAMI-1 & LAMI-2 Injectors Manifolds

Models	Technical Specifications
LAM-1	One way (for single injector). In let thread size M10 x 1 and out let port M8 x 1
LAM-2	Two way (for two injectors). In let thread size M10 x 1 and out let port M8 x 1
LAM-3	Three way (for three injectors). In let thread size M10 x 1 and out let port M8 x 1
LAM-4	Four way (for four injectors). In let thread size M10 x 1 and out let port M8 x 1
LAM-5	Five way (for five injectors). In let thread size M10 x 1 and out let port M8 x 1
LAM-6	Six way (for six injectors). In let thread size M10 x 1 and out let port M8 x 1
LAM-7	Seven way (for seven injectors). In let thread size M10 x 1 and out let port M8 x 1
LAM-8	Eight way (for eight injectors). In let thread size M10 x 1 and out let port M8 x 1
LAM-9	Nine way (for nine injectors). In let thread size M10 x 1 and out let port M8 x 1
LAM-10	Ten way (for ten injectors). In let thread size M10 x 1 and out let port M8 x 1

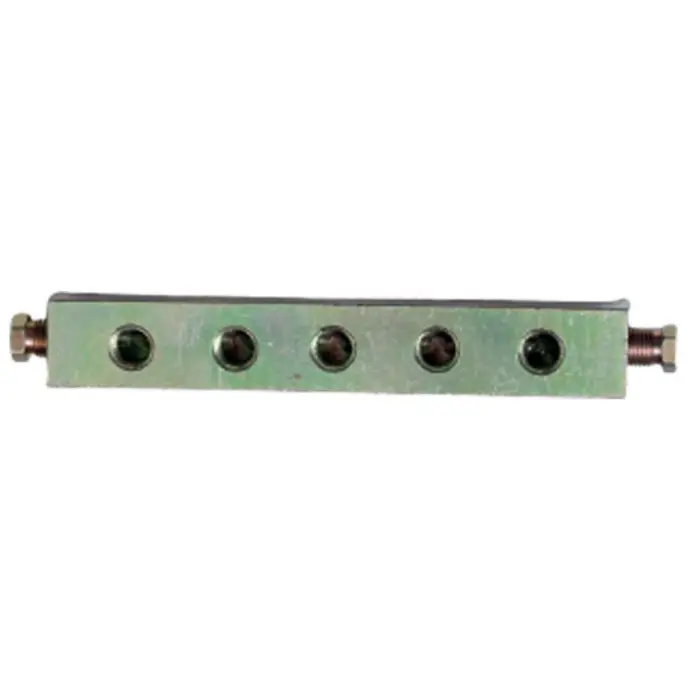

For LAMI-1 & LAMI-2 Injectors Manifolds

Models	Technical Specifications
LAM-1A	One way (for single injector). In let thread size M10 x 1 and out let port M10 x 1
LAM-2A	Two way (for two injectors). In let thread size M10 x 1 and out let port M10 x 1
LAM-3A	Three way (for three injectors). In let thread size M10 x 1 and out let port M10 x 1
LAM-4A	Four way (for four injectors). In let thread size M10 x 1 and out let port M10 x 1
LAM-5A	Five way (for five injectors). In let thread size M10 x 1 and out let port M10 x 1

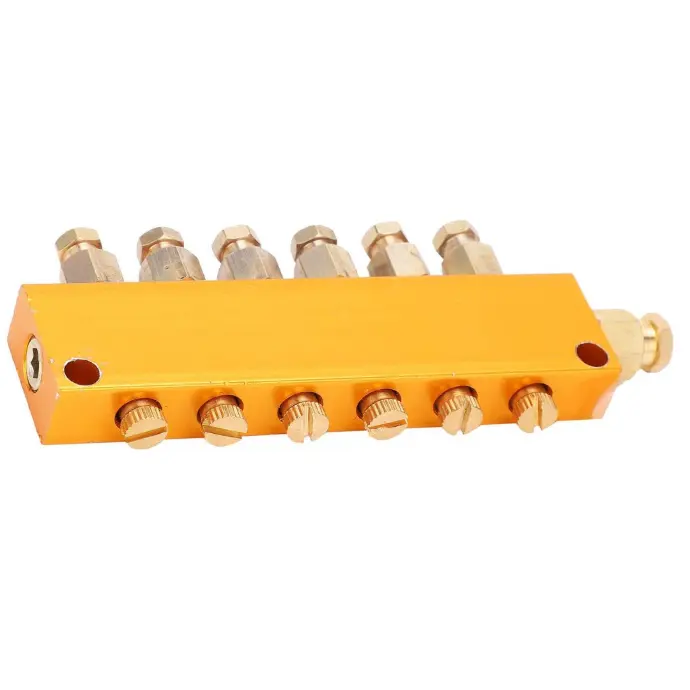

Adjusting Manifolds

Models	Technical Specifications
LAAM-1	No. of outlets - 1, Flow Adjustment as Required, Inlet for 6Ø & Outlet for 4Ø
LAAM-2	No. of outlets - 2, Flow Adjustment as Required, Inlet for 6Ø & Outlet for 4Ø
LAAM-3	No. of outlets - 3, Flow Adjustment as Required, Inlet for 6Ø & Outlet for 4Ø
LAAM-4	No. of outlets - 4, Flow Adjustment as Required, Inlet for 6Ø & Outlet for 4Ø

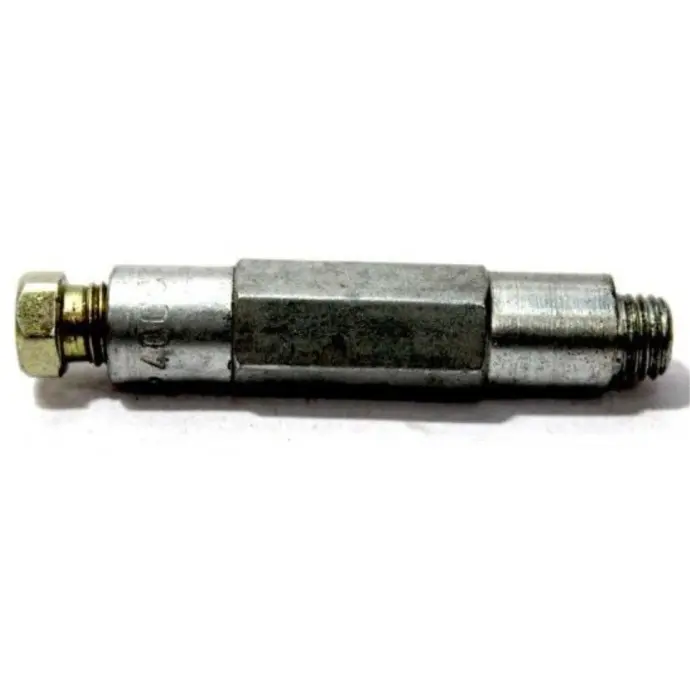

Metering Injectors with Honned Bore & Nitrile Seals

Models	Technical Specifications
LAMI-1	With Dosage 0.01 CC, 0.03 CC, 0.05 CC, 0.10 CC, 0.016 CC perstroke Material M.S.
LAMI-2	With Dosage 0.25 CC, 0.40 CC per stroke, Material M.S.
LAMI-3	With Dosage 1.00 CC, 1.60 CC per stroke, Material M.S.

Note: 20% Extra charge for BRASS Material.

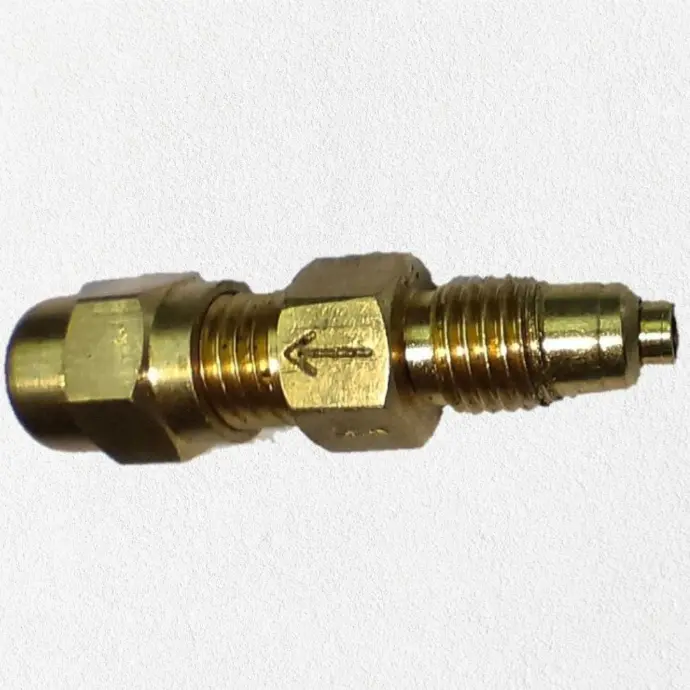

Throttle Valves

Models	Technical Specifications
LA-TV-I	Discharge per minute App. 20 Drops, Thread size M8X1 & 1/8" BSP
LA-TV-II	Discharge per minute App. 30 Drops, Thread size M8X1 & 1/8" BSP
LA-TV-III	Discharge per minute App. 40 Drops, Thread size M8X1 & 1/8" BSP

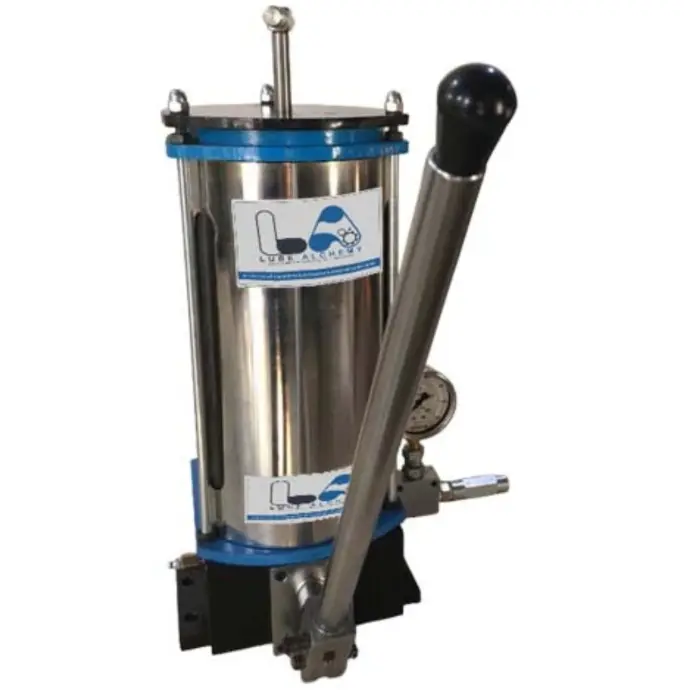

Dual Line Manual Grease Pumps

Models	Technical Specifications
LADMGP - 3000	Reservoir cap. 3 Kg. Max. Discharge 8 gm./stroke Delivery Pressure Max. 250 Kg/cm² Grease grade NLGI-I/II
LADMGP - 4000	Reservoir cap. 4 Kg. Max. Discharge 8 gm./stroke Delivery Pressure Max. 250 Kg/cm² Grease grade NLGI-I/II
LADMGP - 5000	Reservoir cap. 5 Kg. Max. Discharge 8 gm./stroke Delivery Pressure Max. 250 Kg/cm² Grease grade NLGI-I/II

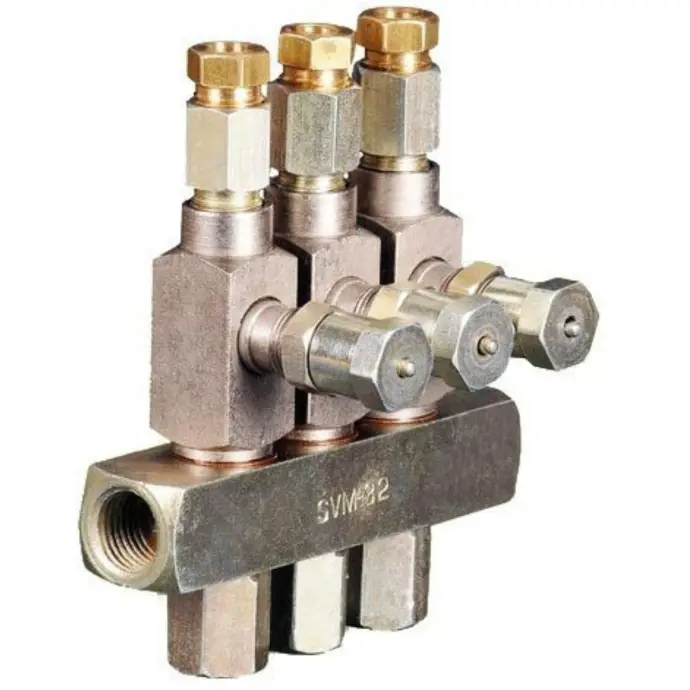

Grease Injectors

Models	Technical Specifications
LASL-33-1	1 Way Discharge per Outlet 0.01-0.15gms./Stroke (Adj.), Pr. 40 - 250 Kg/cm².
LASL-33-2	2 Way Discharge per Outlet 0.01-0.15gms./Stroke (Adj.), Pr. 40-250 Kg/cm².
LASL-33-3	3 Way Discharge per Outlet 0.01-0.15gms./Stroke (Adj.), Pr. 40-250 Kg/cm².
LASL-33-4	4 Way Discharge per Outlet 0.01-0.15gms./Stroke (Adj.), Pr. 40-250 Kg/cm².
LASL-32-1	1 Way Discharge per Outlet 0.01-0.25gms./Stroke (Adj.), Pr. 50-300 Kg/cm².
LASL-32-2	2 Way Discharge per Outlet 0.01-0.25gms./Stroke (Adj.), Pr. 50-300 Kg/cm².
LASL-32-3	3 Way Discharge per Outlet 0.01-0.25gms./Stroke (Adj.), Pr. 50-300 Kg/cm².
LASL-32-4	4 Way Discharge per Outlet 0.01-0.25gms./Stroke (Adj.), Pr. 50-300 Kg/cm².

Inlet Port" BSP (F), Outlet Port Suitable for 6mm OD Tube, with Manifold and Clamps set (Material Carbon Steel)
